• Product Name:Manganese dioxide
  • Molecular Formula:MnO2
  • Purity:99%
  • Molecular Weight:86.9368

Product Details;

CasNo: 1313-13-9

Molecular Formula: MnO2

Appearance: black powder

Factory Supply Manganese dioxide ,Factory Sells 1313-13-9 Best Price

  • Molecular Formula:MnO2
  • Molecular Weight:86.9368
  • Appearance/Colour:black powder
  • Vapor Pressure:0-0Pa at 25℃
  • Melting Point:535 °C (dec.)(lit.)
  • Flash Point:535oC
  • PSA:34.14000
  • Density:5.02 g/cm3
  • LogP:-0.23760

Manganese dioxide(Cas 1313-13-9) Usage


Manganese dioxide is a black or brown solid widely utilized for various applications. It serves as a catalyst and is predominantly employed as a depolarizer in dry cell batteries, making it a crucial non-metallic form of manganese. In traditional alkaline and rechargeable battery cells, manganese dioxide undergoes a redox reaction, becoming Manganese III oxide. Its versatility extends to applications in lithium-ion technologies.

Chemical Properties

Manganese dioxide ( MnO2 ) , known as pyrolusite when found in nature , is the most plentiful of all the manganese compounds. MnO2 is Iron-black to dark steel-gray or bluish mineral; black or bluish-black streak; metallic or dull luster. Soluble in hydrochloric acid. Manganese dioxide is an important component in batteries. It is also used in glassmaking to remove the green fint caused by iron impurities.

Toxicity evaluation

Inhalation exposure to high concentrations of manganese dusts (specifically manganese dioxide [MnO2] and manganese tetroxide [Mn3O4]) can cause an inflammatory response in the lung, which, over time, can result in impaired lung function. Lung toxicity is manifested as an increased susceptibility to infections such as bronchitis and can result in manganic pneumonia. Pneumonia has also been observed following acute inhalation exposures to particulates containing other metals. Thus, this effect might be characteristic of inhalable particulate matter and might not depend solely on the manganese content of the particle.

Physical properties

Black tetragonal crystals; density 5.08 g/cm3; Moh’s hardness 6.3; decomposes at 535°C; insoluble in water.


Acts as a colorant and decolorizer in the production of brick, tile, porcelain, and glass. It serves as a drier for paints and varnishes, a preparation for printing and dyeing textiles, and a curing agent for polysulfide rubbers.

Primarily used as a depolarizer in dry cell batteries, both alkaline and rechargeable, participating in redox reactions crucial for battery function. It is also utilized in lithium-ion technologies.


Pure manganese(IV) oxide (precipitate form) may be prepared by reducing permanganate ion with a manganous salt: 2KMnO4 + 3MnSO4 + 2H2O → 5MnO2 + K2SO4 + 2H2SO4 Manganese(IV) oxide can also be precipitated by oxidation of a manganese(II) salt using an oxidizing agent such as hypochlorite or peroxydisulphate: Mn2+ + S2O82– + 2H2O → MnO2 + 2SO42– + 4H+ Manganese(IV) oxide may also be made by thermal decomposition of manganese(II) nitrate; or from roasting manganese(II) carbonate in air: Mn(NO3)2 → MnO2 + 2NO2 MnCO3 + ? O2 → MnO2 + CO2 A highly active gamma-MnO2 can be produced by treating manganese(III) oxide with hot sulfuric acid: Mn2O3 + H2SO4 → MnO2 + MnSO4 + H2O Mn2O3 is derived from pyrolusite by heating the mineral at 600–800°C or reducing with powdered coal at 300°C.

Reactivity Profile

The stability of manganese dioxide is due primarily to its insolubility. It is, however, readily attacked by reducing agents in acid solution, for example oxidizing concentrated hydrochloric acid to chlorine. In hot concentrated alkali it dissolves to give a purple solution which contains an equimolar mixture of trivalent manganese, probably as (Mn(OH)6)3- and manganate(V), (MnO4)3-. Manganese dioxide is also one of the most active catalysts for the oxidation of carbon monoxide near room temperature.


Oxidizing agent, may ignite organic materials.

Flammability and Explosibility


Safety Profile

Poison by intravenous and intratracheal routes. Moderately toxic by subcutaneous route. Experimental reproductive effects. A powerful oxidizer. Flammable by chemical reaction. It must not be heated or rubbed in contact with easily oxilzable matter. Violent thermite reaction when heated with aluminum. Potentially explosive reaction with hydrogen peroxide, peroxomonosulfuric acid, chlorates + heat, anilinium perchlorate. Ignition on contact with hydrogen sulfide. Violent reaction with oxidizers, potassium azide (when warmed), diboron tetrafluoride, Incandescent reaction with calcium hydride, chlorine trifluoride, rubidium acetylide (at 350℃). Vigorous reaction with hydroxylaminium chloride. Incompatible with H202, H2SO j, Naz02. Keep away from heat and flammable materials. See also MANGANESE COMPOUNDS.

Potential Exposure

Manganese dioxide is used as depolarizer for dry cell batteries, for production of manganese metal; as an oxidizing agent; laboratory reagent; and in making pyrotechnics and matches; in dry cell batteries.


UN1479 Oxidizing solid, n.o.s., Hazard Class: 5.1; Labels: 5.1-Oxidizer, Technical Name Required. UN3137 (powder) Oxidizing solid, flammable, Hazard Class: 5.1; Labels: 5.1-Oxidizer, 4.1 Flammable solid, Technical Name Required.


A powerful oxidizer. Incompatible with strong acids; reducing agents; combustible materials (such as fuel and clothing; organic materials. Mixtures with calcium hydride is a heat- and friction-sensitive explosive. Vigorous reaction with hydrogen sulfide, diboron tetrafluoride; calcium hydride; chlorine trifluoride; hydrogen peroxide; hydroxyaluminum chloride; anilinium perchlorate. Decomposes when heated above 553C producing manganese(III)oxide and oxygen, which increases fire hazard. Reacts violently with aluminum (thermite reaction), potassium azide; rubidium acetylide; in the presence of hea

Waste Disposal

Generators of waste (equal to or greater than 100 kg/mo) containing this contaminant, EPA hazardous waste number N450, must conform to USEPA regulations for storage, transportation, treatment, and disposal of waste. Dispose of waste material as hazardous waste using a licensed disposal contractor to an approved landfill. Dispose of contents and container to an approved waste disposal plant. Containers must be disposed of properly by following package label directions or by contacting your local or federal environmental control agency, or by contacting your regional EPA office. All federal, state, and local environmental regulations must be observed. Do not discharge into drains or sewers


1313-13-9 Relevant articles

A high performance solid state asymmetric supercapacitor device based upon NiCo2O4 nanosheets//MnO2 microspheres

Khalid, Syed,Cao, Chuanbao,Wang, Lin,Zhu, Youqi,Wu, Yu

, p. 70292 - 70302 (2016)

A high performance solid state asymmetri...

A new 3D supramolecular manganese(II) complex constructed from benzimidazole-5,6-dicarboxylate and Oxalate: Synthesis, structural, and magnetic properties

Geng, Jin-Peng,Wang, Zhao-Xi,Wu, Qiong-Fang,Li, Ming-Xing,Xiao, Hong-Ping

, p. 301 - 305 (2011)

A new manganese(II) complex [Mn3(bidc)2(...

Sonochemical preparation of stable porous MnO2 and its application as an efficient electrocatalyst for oxygen reduction reaction

Zuo, Ling-Xia,Jiang, Li-Ping,Abdel-Halim,Zhu, Jun-Jie

, p. 219 - 225 (2017)

Porous MnO2 as a non-noble metal oxygen ...

Local atomic arrangement and electronic structure of nanocrystalline transition metal oxides determined by X-ray absorption spectroscopy

Hwang, Seong-Ju,Choy, Jin-Ho

, p. 5791 - 5796 (2003)

The local crystal structure and electron...

A comparison study of MnO2and Mn2O3as zinc-ion battery cathodes: An experimental and computational investigation

Shen, Hongyuan,Liu, Binbin,Nie, Zanxiang,Li, Zixuan,Jin, Shunyu,Huang, Yuan,Zhou, Hang

, p. 14408 - 14414 (2021)

The high specific capacity, low cost and...

Structure and electrochemical performance of hollow microspheres of LiFexNi1/3-xCo1/3Mn1/3O2 (0.000 ≤ x ≤ 0.267) as cathodes for lithium-ion batteries

Chang, Qing,Zhang, Heng,Wang, Xujun,Shao, Weiquan,Li, Hongliang,Yuan, Feng,Xu, Xiangang,Xu, Sheng

, p. 56274 - 56278 (2015)

LiFexNi1/3-xCo1/3Mn1/3O2 (0.000 ≤ x ≤ 0....

LiNi0.5Mn1.5O4 nano-submicro cubes as high-performance 5?V cathode materials for lithium-ion batteries

Wu, Yu,Zhang, Junting,Cao, Chuanbao,Khalid, Syed,Zhao, Quanqing,Wang, Ran,Butt, Faheem K.

, p. 293 - 298 (2017)

High-voltage spinel LiNi0.5Mn1.5O4 is co...

Oxidative Cleavage of S–S Bond During the Reduction of Tris(pyridine-2-carboxylato)manganese(III) by Dithionite in Sodium Picolinate–Picolinic Acid Buffer Medium

Sen Gupta, Kalyan K.,Bhattacharjee, Nandini,Pal, Biswajit

, p. 635 - 643 (2016)

The reduction of tris(pyridine-2-carboxy...

Spectroscopic and electrochemical properties of mononuclear Mn(III) complex and of binuclear di-μ-oxo bridged Mn(III) and Mn(IV) complex with isocyclam


, p. 70 - 78 (2012)

trans-[MnIIIisocyclamCl2]Cl·2H2O and [Mn...

Synthesis, spectroscopic characterization, thermal, and photostability studies of 2-(2′-hydroxy-5′-phenyl)-5-aminobenzotriazole complexes

Refat, Moamen S.

, p. 1095 - 1103 (2010)

Three Mn(II), Co(II), and Cu(II) new tra...

Synthesis, Crystal Structures, Reactivity, and Magnetochemistry of a Series of Binuclear Complexes of Manganese(II), -(III), and -(IV) of Biological Relevance. The Crystal Structure of IV(μ-O)3MnIVL'>(PF6)2*H2O Containing an Unprecedented Short Mn...Mn Distance of 2.296 Angs...

Wieghardt, Karl,Bossek, Ursula,Nuber, Bernhard,Weiss, Johannes,Bonvoisin, J.,et al.

, p. 7398 - 7411 (1988)

The disproportionation reactions of two ...

An ellipsometric study of manganese oxide films: In situ characterization of the deposition and electroreduction of MnO2

Ubeda, M. Hernandez,Perez,Mishima,Villullas,Zerbino,De Mishima, B.A. Lopez,Teijelo, M. Lopez

, p. A37-A41 (2005)

The electrodeposition of manganese oxide...

Bifunctional pyrimidine-amino-acid ligands: Solution study and crystal structure of a Mn(II) chain alternating six- and sevenfold coordination environments


, p. 41 - 48 (2003)

The acid-base characterization in aqueou...

1D slide-fastener-like coordination polymers of Mn(II) derived from pyrazine-2,3,5,6-tetracarboxylic acid

Gao, Hong-Ling,Zhang, Yan-Ping,Yang, Ai-Hong,Fang, Su-Rong,Cui, Jian-Zhong

, p. 97 - 100 (2009)

Two new 1D slide-fastener-like coordinat...

Enhanced anode performance of manganese oxides with petal-like microsphere structures by optimizing the sintering conditions

Yu, Wei,Jiang, Xiaojian,Meng, Fanhui,Zhang, Zhonghua,Ma, Houyi,Liu, Xizheng

, p. 34501 - 34506 (2016)

Herein, the rational design and synthesi...

Power loss and energy density of the asymmetric ultracapacitor loaded with molybdenum doped manganese oxide

Wang, Yue-Sheng,Tsai, Dah-Shyang,Chung, Wen-Hung,Syu, Yong-Sin,Huang, Ying-Sheng

, p. 95 - 102 (2012)

Ultracapacitors of asymmetric configurat...

Stretching the: C-axis of the Mn3O4lattice with broadened ion transfer channels for enhanced Na-ion storage

Fu, Zhenzhen,Hu, Lingyuan,Li, Bingcan,Liu, Ruochen,Liu, Xia,Wang, Dewei,Wang, Shiyu,Yan, Yi-Ming,Yang, Ru,Yang, ZhiYu,Yao, Shuyun,Zhang, Anqi,Zhao, Rui

supporting information, p. 23506 - 23514 (2021/11/04)

Mn3O4 is a typical electrode material fo...

Effect of Manganese Valence on Specific Capacitance in Supercapacitors of Manganese Oxide Microspheres

Chen, Xing,Li, Lei,Wang, Xiaoli,Xie, Kun,Wang, Yuqiao

, p. 9152 - 9159 (2021/05/17)

Manganese oxides have attracted great in...

1313-13-9 Process route



manganese(IV) oxide

manganese(IV) oxide

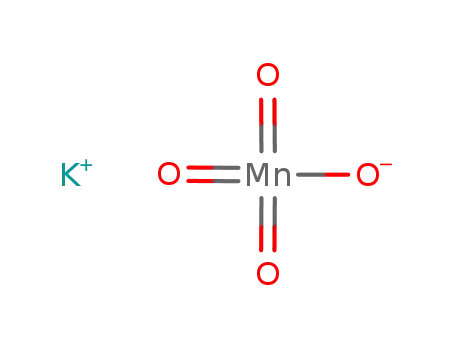

potassium permanganate

potassium permanganate

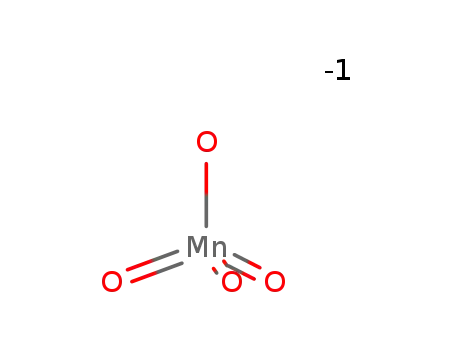

permanganate(VII) ion

permanganate(VII) ion

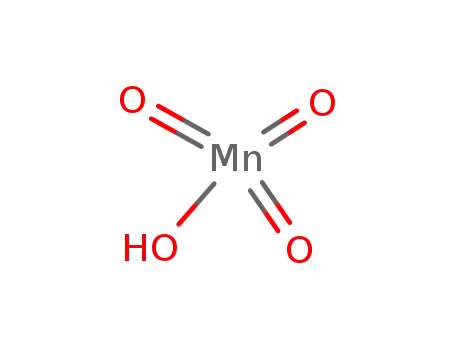

permanganic acid

permanganic acid

Conditions Yield

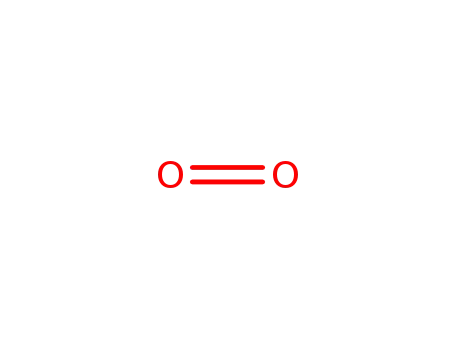

In further solvent(s); byproducts: O2, CO2; Electrolysis; in 4n K2CO3 soln., current density 0.1 A/cm2;

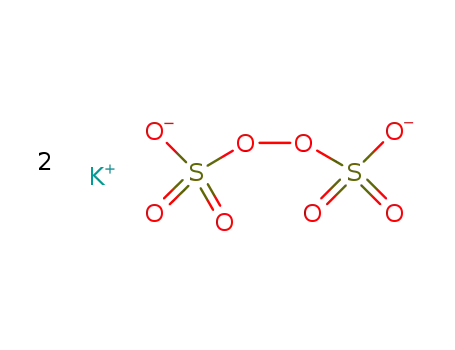

dipotassium peroxodisulfate

dipotassium peroxodisulfate

manganese(II) oxide

manganese(II) oxide

manganese(IV) oxide

manganese(IV) oxide

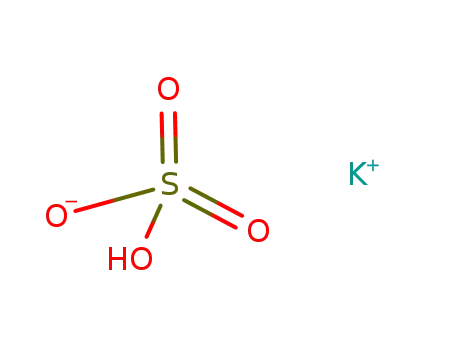

potassium hydrogensulfate

potassium hydrogensulfate

permanganic acid

permanganic acid

Conditions Yield
silver (I) ion; In water; in alk. soln.;
copper(II) ion; In water; in alk. soln.;
cobalt(II) chloride; In water; in alk. soln.;
nickel dichloride; In water; in alk. soln.;
silver (I) ion; In water; in alk. soln.;
copper(II) ion; In water; in alk. soln.;
cobalt(II) chloride; In water; in alk. soln.;
nickel dichloride; In water; in alk. soln.;

1313-13-9 Upstream products

  • 7773-01-5

    manganese(ll) chloride

  • 1310-73-2

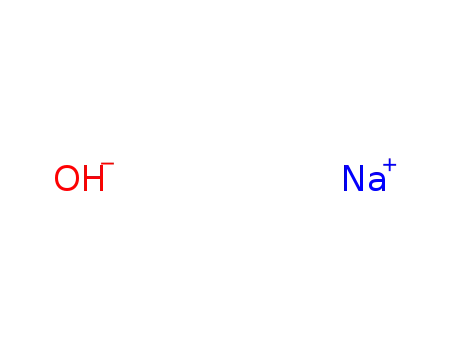

    sodium hydroxide

  • 7722-64-7

    potassium permanganate

  • 172332-99-9

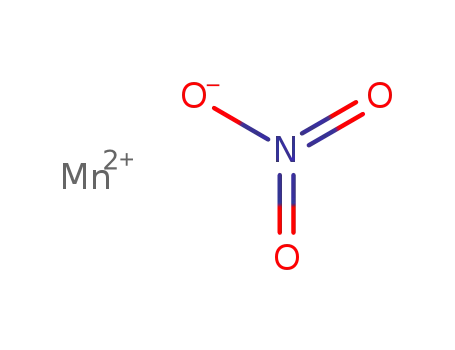

    manganese(II) nitrate

1313-13-9 Downstream products

  • 503176-36-1


  • 7773-01-5

    manganese(ll) chloride

  • 14333-13-2

    permanganate(VII) ion

  • 80937-33-3
